Huikai Video to Fiber Systems
|

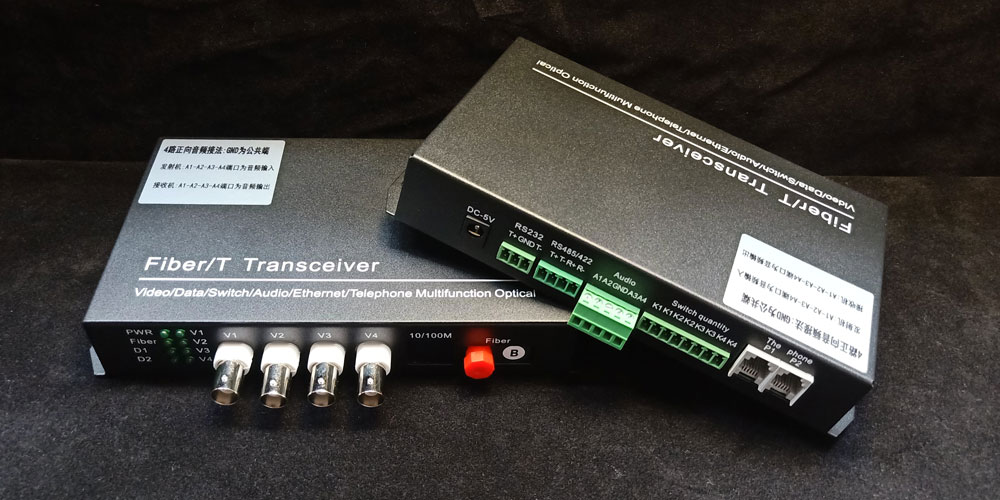

4 Video 4 Audio to Fiber Converter
Benifits description:
1) 4x Video
2) 4x Forward Audio
3) 1x FC/SC/ST connector
Features:
1) High definition, Lossless non-compression real time transmission
2) Support 4 channal CVBS video & 4 audios extend up to 20km via one SM fiber
3) UPnP, easy installation
4) Constant input optical power, and large dynamic range , no electrical or optical adjustments required
5) Industry-grade of operating temperature from -10°Cto 75°C
6) Stand-alone type or card-type installed in 19’’ 4U rack-mount chassis.
7) Optical interface: FC,ST,SC (optional)
Description：
4 channel Video and 4 channel Audio over Fiber Extender, 4 channel CVBS Videos and 4 channel Audio over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . The Video can be customized AHD CVI TVI HD videos.
Technical parameter list:
| Product Name | 4 Video 4 Audio to Fiber Converter |
| Product Model | HK-4V4A-T/R |
| Video Connector | BNC |
| Optical Fiber | Single mode / Multimode, FC/SC/ST, Simplex, |
| Extend Distance | 0-20km over SM / 0-2km over MM |
| Power Supply | AC85-260V/DC 5V2A |
| Power Consumption | 3W |
| Dimension / GW | 1.20 kg/pair |
| Working Environment | Working Temperature: 0 °C～+55 °C; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Warranty | 2 Years |
