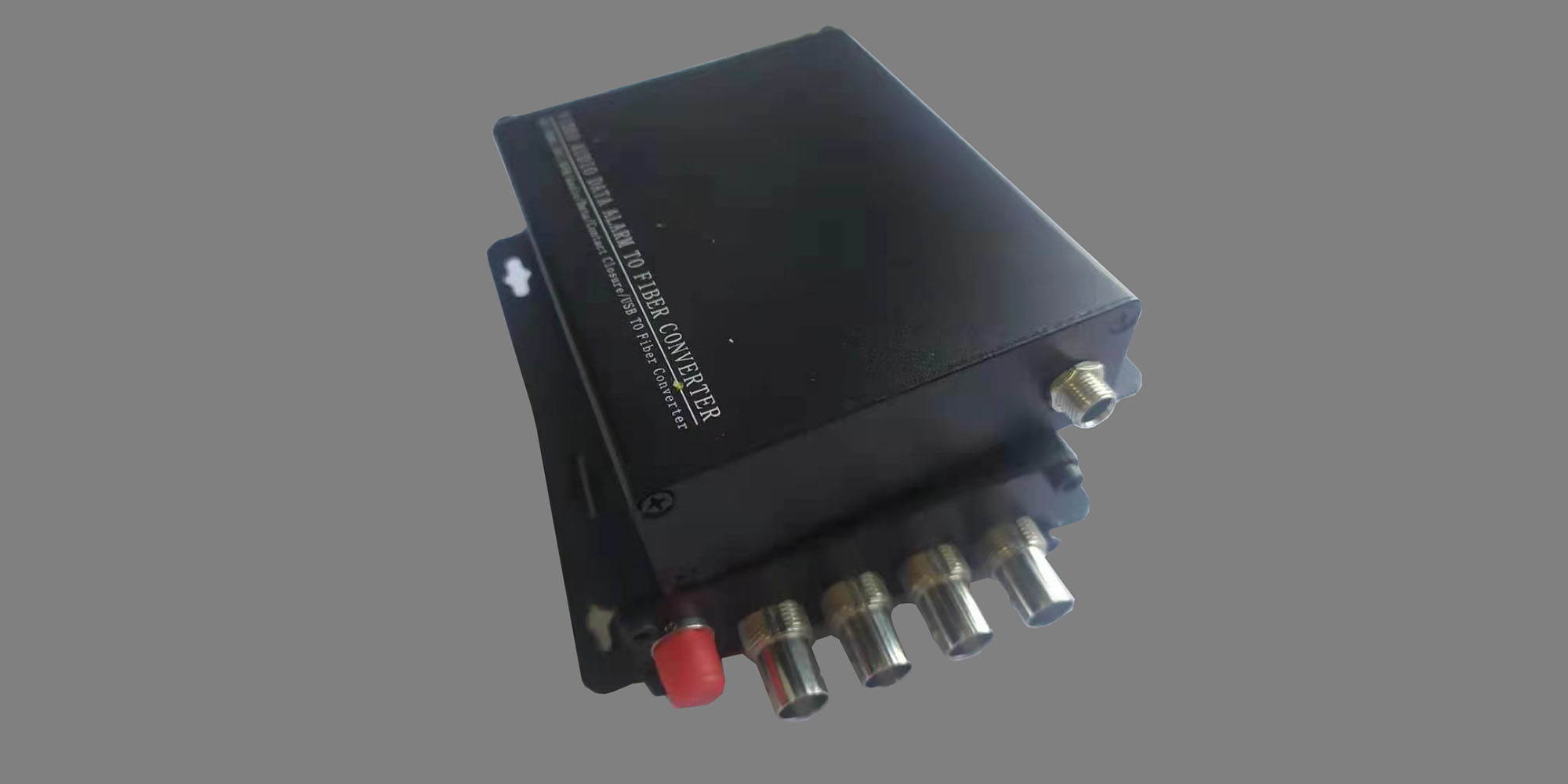

8K SDI to fiber converter | 4 Channel 12G SDI 7680*4320

Description:

8K 4*12G SDI optical transceiver is an SDI digital video optical fiber transmission system, which can support 8K resolution high-definition video, and can transmit long-distance transmission on single-mode optical fiber in accordance with SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI SDI serial digital video signal. Adopting advanced digital optical fiber transmission technology, there is no need to make any adjustments in the high-definition broadcast and television system, the design is simple, the work is safe and reliable, and it is suitable for long-distance optical fiber transmission applications of broadcast-level high-definition SDI signals.

Features:

> 1 channel video and audio transmission of 8K SDI signal over optic fiber, Support 7680*4320 resolution.
> Handles pathological pattern
> 4 channel video and audio transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal over optic fiber
> Handles pathological pattern
> Automatic cable equalization to ensure signal integrity
> With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
> Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
> Long transmission capability at least 500M (MM fiber)/10KM(SM fiber)
> Terminal block power input for industrial application
> Supports hot swapping and hot plugging
> Simplex LC/ST/SC/FC single mode optical connection

 Support 7680*4320 resolution
 4 channels of 12G low jitter and no difference SDI high-definition video fiber transmission
 support 4 channels 270Mbit/s-11.88Gbit/s rate;
 Conforms to ITU-R BT.2020 standard
 Single-core single-mode fiber for reliable transmission, with a transmission distance of more than 10KM
 Professional power interface with lock

Specifications:

Product:	4 Channel 12G SDI 7680*4320 8K SDI to fiber converter
Model No.:	HK-SDI-8K-V1 / HK-SDI-4K-4V-T/R
SDI Format:	SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
Data rate:	270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
SDI interface:	BNC 75 Ohm
Fiber:	Single mode, 1x LC/ST/FC/FC
Extend distance:	Up to 10km
SDI input:	1x 8K or 4x 4K (4x BNC 75 Ohm)
SDI output:	1x 8K or 4x 4K (4x BNC 75 Ohm)
Dimension:	104x104x28(mm)
Packing in the box:	1x Transmitter, 1x Receiver, 2x Power adapters
Automatic cable EQ:	75m @11.88Gbps(UHD), 120m @5.94Gbps (UHD), 200m @2.97Gbps(FHD),280m @1.485Gbps(HD)
Wavelength:	1270-1610 nm
Transmitter output power:	-6~-1dBm (0±3dBm optional)
Receiver sensitivity:	-14.4dBm～-1dBm

General index:

Input power: DC 5 V or 18V
Power consumption: <12W
Work Temp: -20°C to 70°C
Storage Temp: -40°C to 85°C
Humidity: 0 ~ 95% (non-condensing)
Case material: Aluminum
Net weight: 700g /pair (with Power supply 900g/pair)

Panel And Connection Graphs:
