Huikai Video to Fiber Systems
4K 3G HD SDI, EFP, 4K HDMI, DVI, VGA, KVM, AHD, CVI, TVI, CVBS, Audio, Fiber Converter, Fiber Extender
|
1080P HDMI Audio to Fiber Converter and Extender
Benifits description:
1) 1x HDMI
2) 1x Stereo Audio (3.5mm Jack)
3) 1x FC connector
Features:
1) 1080P HDMI and one separate audio Transmission
2) Full color, compressed, real-time transmission
3) LED Indicators for Instant System Monitoring
4) OEM & ODM support
5) No user adjustments required, Plug and Play
Description：
1080P HDMI Audio to Fiber Converter and Extender
Technical parameter list:
| Product Name | 1080P HDMI Audio to Fiber Converter and Extender |
| Product Model | HK-HDMI-1V1A |
| Connector | 1x HDMI, 1x Audio, 1x FC, 1x DC |
| Optical Fiber | Single mode / Multimode, FC, Simplex, |
| Power Supply | AC85-260V/DC 12V1A |
| Power Consumption | 3.5 W |
| Dimension / GW | 164 x 85 x 25mm / 0.90 kg per pair |
| Working Environment | Working Temperature: -20°C to 55°C; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Warranty | 2 Years |

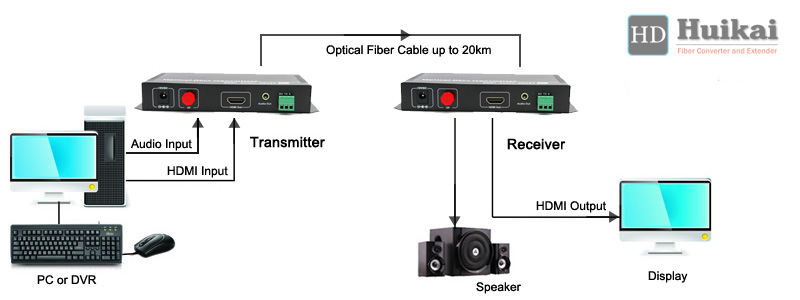

Diagram:
 |

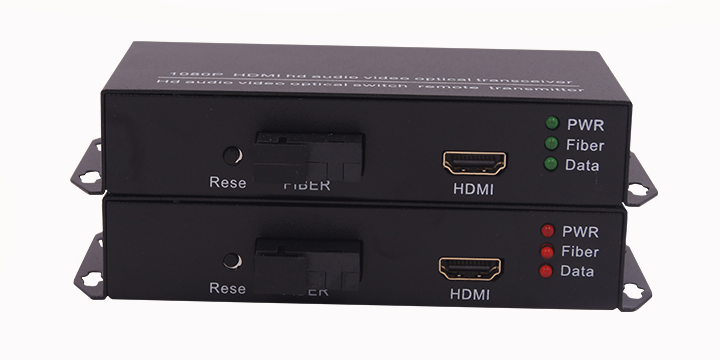

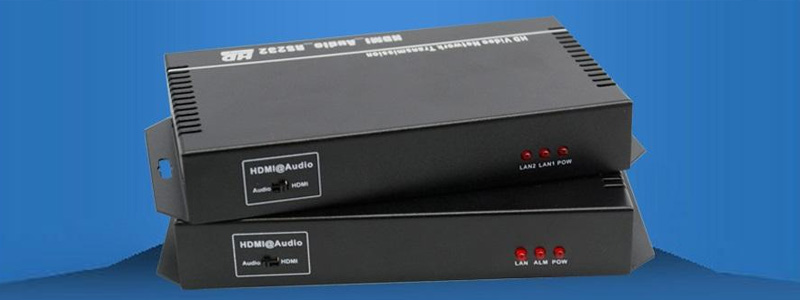

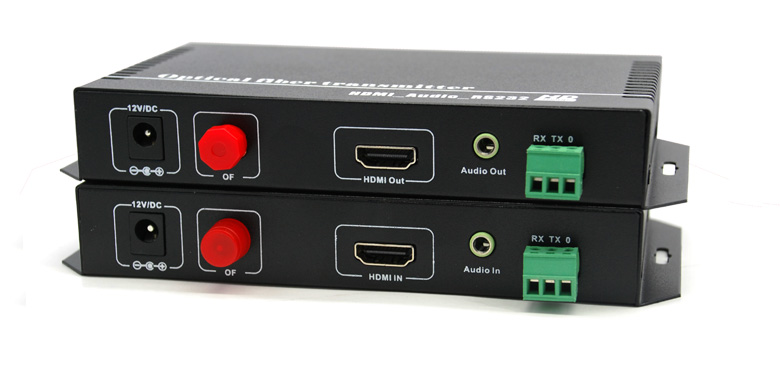

Photos:
New coming: 1 channel HDMI to Fiber Converter
