KVM VGA to Fiber converter With USB Keyboard & USB Mouse

KVM VGA TO FIBER CONVERTER

Benifits description:

1) TX: 1x FC(SM fiber), 1x VGA input, 1x Audio input, 1x USB input,
2) RX: 1x FC(SM fiber), 1x VGA output, 1x Audio output, 2x USB output,

Features:

1) 1080P VGA & one separate audio & USB Transmission
2) Full color, compressed, real-time transmission
3) LED Indicators for Instant System Monitoring
4) OEM & ODM support
5) No user adjustments required, Plug and Play

Description：

KVM VGA to Fiber converter is designed to transmit VGA and USB signals over optic fiber cable, with which we can transmit 1-channel VGA signals & Audio & USB signals over one simplex optic fiber, Long Distance, Lossless, Non-compression, Real-time transmission. Well used in CCTV.

Technical parameter list:
Product Name	KVM VGA to Fiber converter With USB Keyboard & USB Mouse
Product Model	HK-KVM-VGA-FC-T/R
Connector	1x VGA, 1x Audio, 2x USB, 1x FC, 1x DC
Optical Fiber	Single mode / Multimode, FC, Simplex,
Power Supply	AC90-260V/DC 12V1A
Power Consumption	5 W
Dimension / GW	165 x 85 x 25mm / 0.90 kg per pair
Working Environment	Working Temperature: -20°C to 55°C; Relative Humidity: 0 ~ 95% (no cold condensation)
Warranty	2 Years

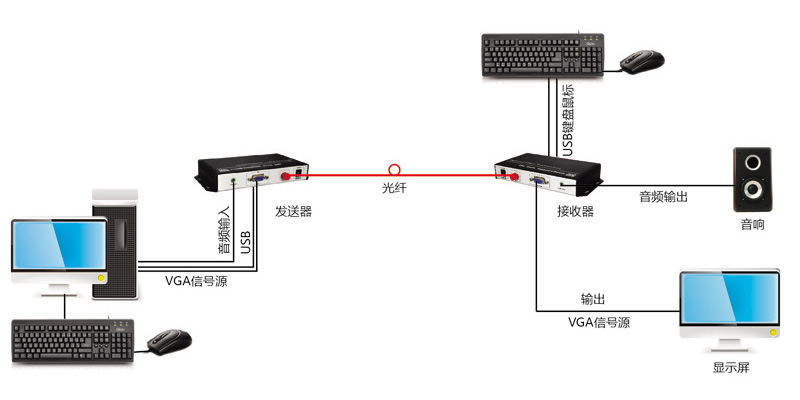

Diagram:

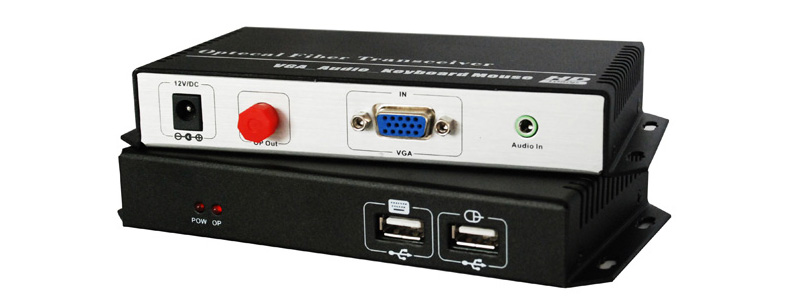

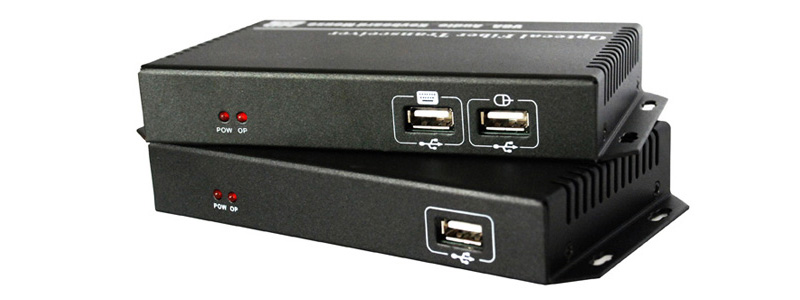

More photos:

Tags: HDMI DVI VGA KVM Extender
