KVM HDMI over Fibre Extender with IR

Benifits description:

1) TX: 1x SC(SM fiber), 1x HDMI input, 1x IR Output, 1x USB input,
2) RX: 1x SC(SM fiber), 1x HDMI output, 1x IR input, 2x USB output,

Features:

1, Support 1920×1080@60Hz
2, Max extension distance 2KM(MM fiber) / 20~100KM(SM fiber)
3, Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems,
4, support plug and play
5, Support HDMI /DVI interface
6, Support USB(keyboard or mouse) and IR signal

Description：

KVM HDMI over Fibre Extender with IR includes a transmitter and a receiver, which can extend HDMI & USB(keyboard or mouse) and IR signal to a remote location over single fiber cable. The device support HDMI / DVI transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 2KM (MM fiber cable)/ 20~100KM(SM fiber cable). The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

Technical parameter list:
Product Name	KVM HDMI over Fibre Extender with IR
Product Model	HK-KVM-HDMI-SC-T/R
Connector	1x HDMI, 2x USB, 1x FC, 1x DC
Optical Fiber	Single mode / Multimode, FC, Simplex,
Power Supply	AC90-260V/DC 5V1A
Power Consumption	4.5 W
Dimension / GW	157 x 81 x 25mm / 1.40 kg per pair
Working Environment	Working Temperature: -20°C to 55°C; Relative Humidity: 0 ~ 95% (no cold condensation)
Warranty	2 Years

Diagram:

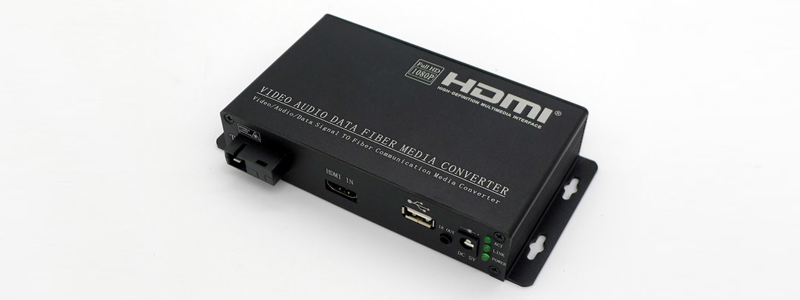

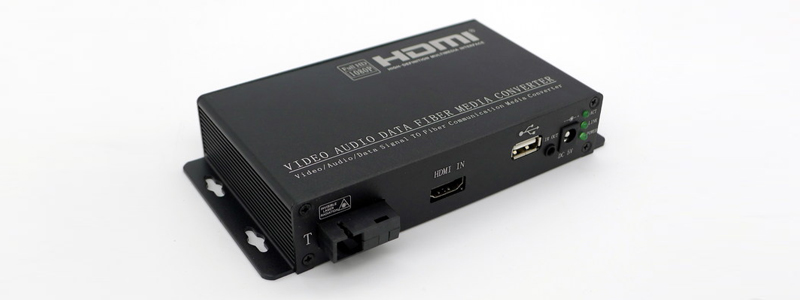

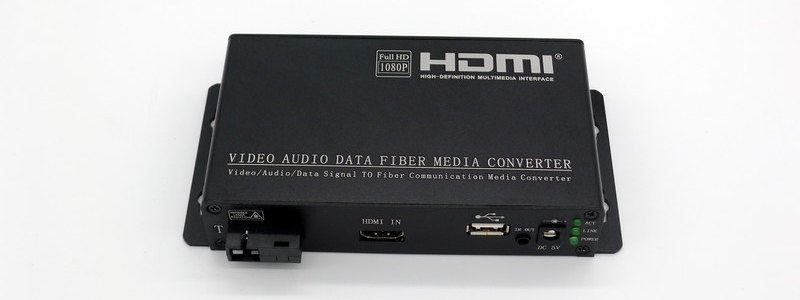

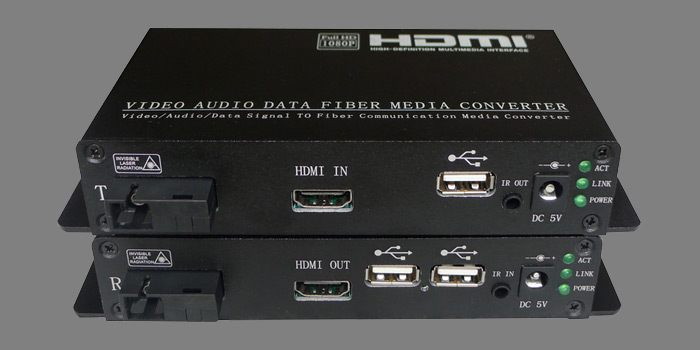

More photos:
