Mini EFP to Fiber Converter A104 4-ch SDI to camera EFP fiber system with intercom Tally Return SDI
Mini EFP to Fiber Converter A104 4-ch SDI to camera EFP fiber system with intercom Tally Return SDI
Overview:

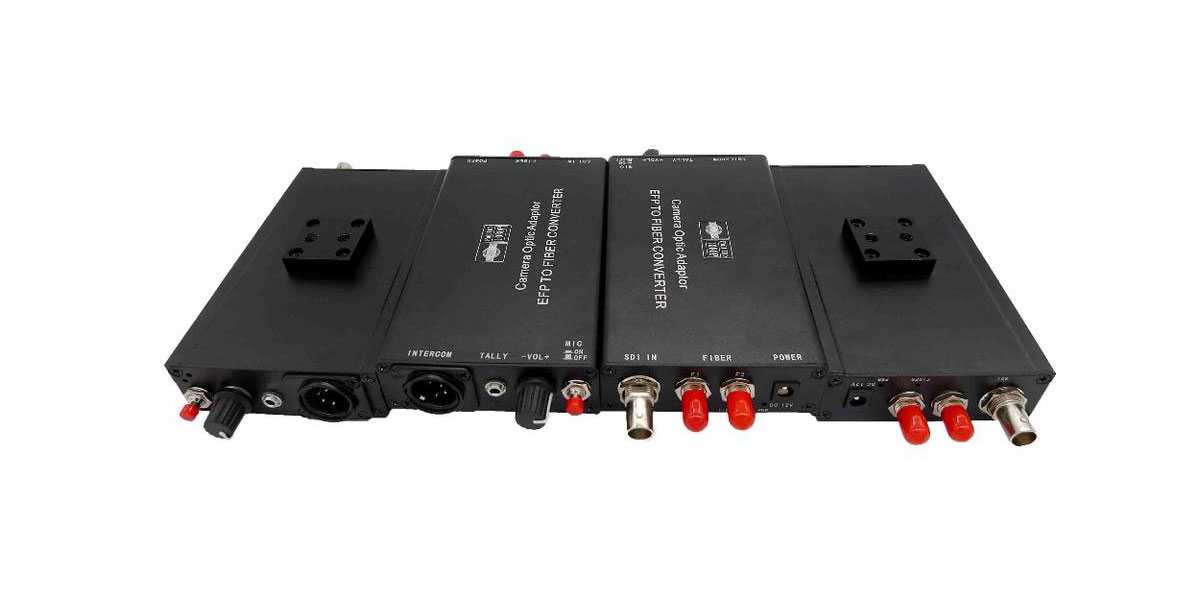

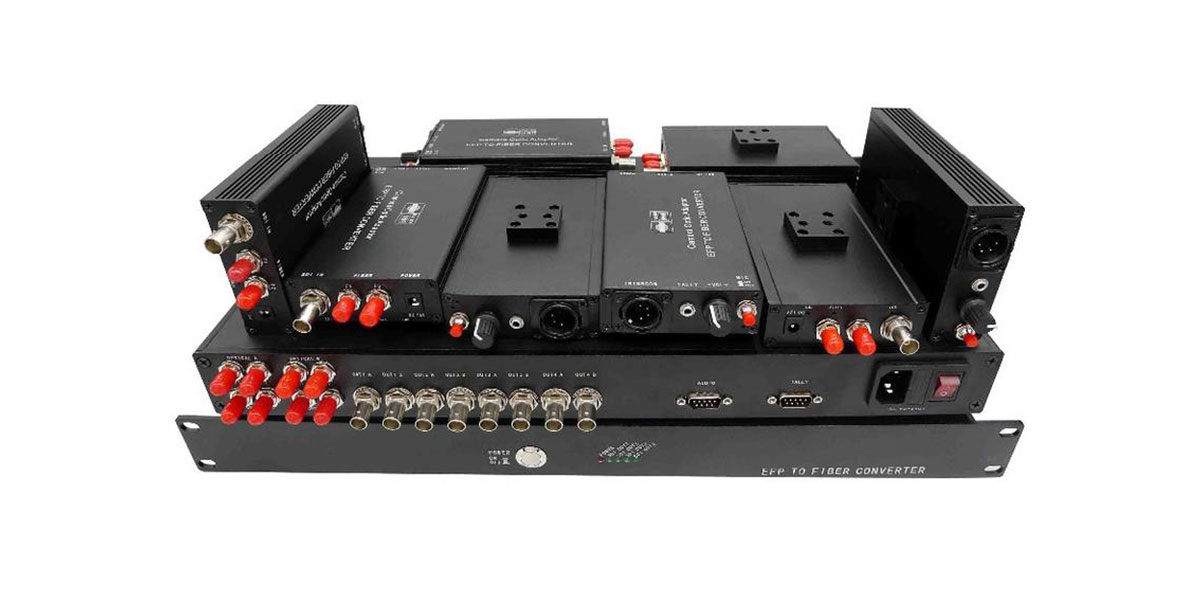

Simple EFP To Fiber includes a Camera Optic Adaptor and optic Base Station. The system transports 1 ch 3G/HD-SDI signal from the camera to the Base Station, intercom (Camera end can be connected to professional 4-pin or 5-pin XLR headset, OB end can be connected to intercom main station), tally(Onecolor or two colors can be selected). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a fiber cable, insuring robust, trouble-free connectivity in any studio or remote production. The bottom of the screw hole can be fitted with a camera shoe mount. Because of its simple function, 4 bases can be combined into one Optic Base Station.
Technical parameter list:
| Product Name | Simply Version EFP to Fiber Converter A104 ( SDI, Tally, Intercom ) |
| Product Model | HK-EFP-A104 |
| SDI Connector | BNC 75 Ohm |
| Optical Fiber | Single mode / Multimode, FC/SC/ST, Duplex, |
| Power Supply | DC 11V to 19V |
| Power Consumption | 10W |
| Dimension / GW | 140mm*82mm*28mm at Camera end, 19” 1U standard rack mount at base end / 5.50 kg per pair |
| Working Environment | Working Temperature: -20°C to 55°C; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Warranty | 2 Years |
Features:
· 1 ch forward SDI
· Handle all Pathological patterns
· Automatic cable equalization to ensure signal integrity
· 3G/HD/SD-SDIinput auto recognition,
· Support 270Mbit/s – 2.97Gbit/s according to SMPTE 424M,SMPTE 292M and SMPTE 259M
· 10+Kmon single-mode fiber transmission
· Micinputs with mute and pre-amps
· Headphone with volume up or down
· TallyLED+/- output or dry Contact Closure optional
· Genlockor TC/BB are optional
· Remote-control data is also optional
· Bottomscrew hole can be installed with a camera shoe mount
Diagram:
Adapter to Base diagram:
| Genlock / TC / BB(can be optional) | |
| Number of Channels: | 1 |
| Impedance: | BNC 75Ω (unbalance) Input/output |
| Voltage: | 1.0Vp-p Input/output |
| Differential Gain: | < ±1.5% |
| Differential Phase: | < ±1% |
| SNR: | >60dB |
| Intercom at Camera Optic Adaptor: | |
| Interface: | 4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack |
| Microphone: | Mic inputs with mute and pre-amps |
| Headphone: | with volume up or down |
| Intercom at Optic Base Station: | |
| Interface: | DB9(Female) or 3.5mm jack |
| Audio: | Line level unbalanced audio input and output |
| Tally at Camera Optic Adaptor: | |
| Interface: | 3.5mm jack or 3pin mini XLR |
| Output: | Dry Contact Closure or wet LED+/- |
| Output: | On: short or LED on ◇◇◇ Off: open or LED off |
| Tally at Optic Base Station: | |
| Interface: | DB9(Male) |
| Output: | Dry Contact Closure or TTL |
| Output: | On: short to GND or TTL low ◇◇◇ Off: open or TTL high |
