3 Channel 12G SDI with 1000M POE to Fiber Converter Support Panasonic AW-UE150KP 4K PTZ Camera

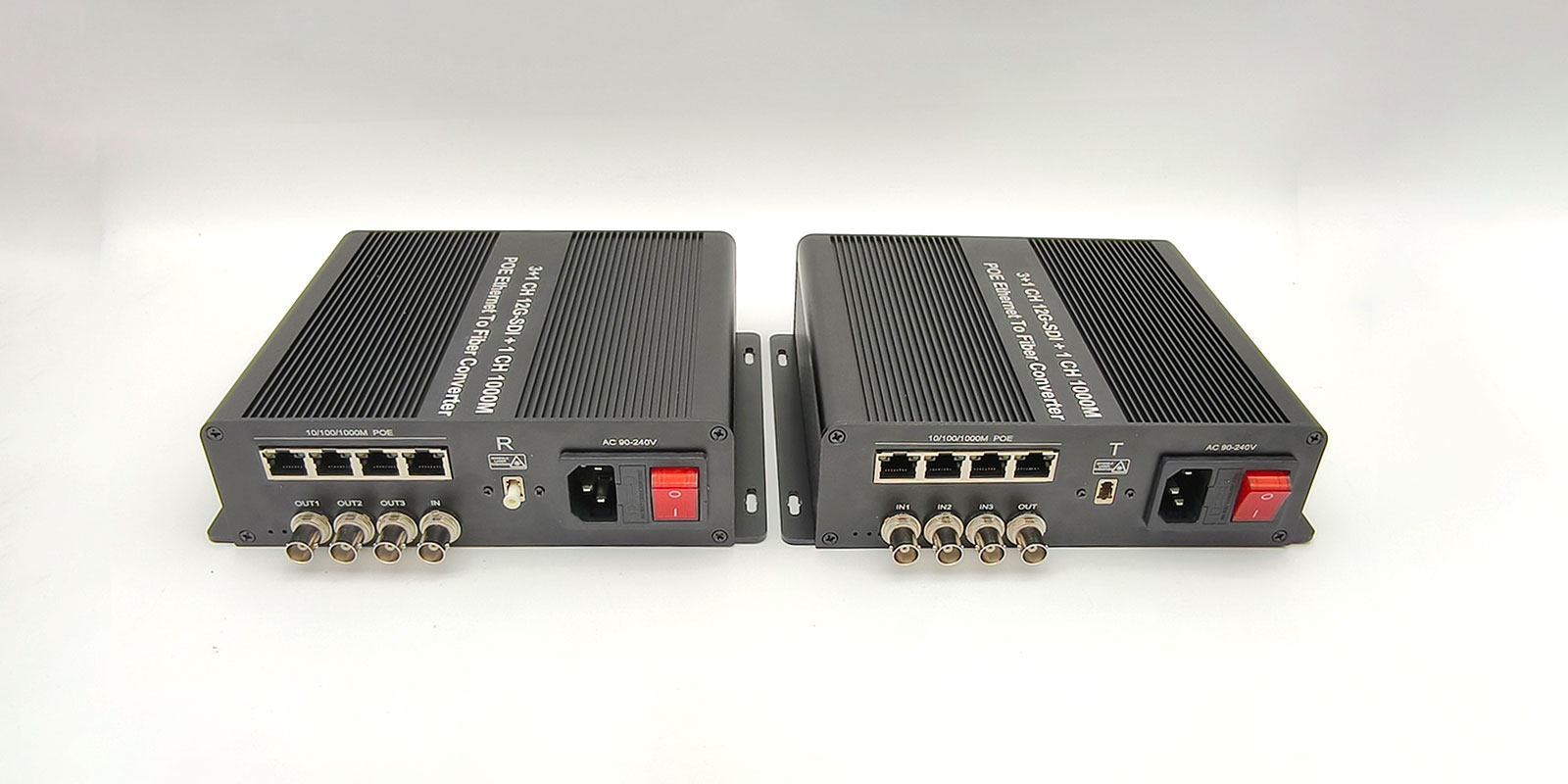

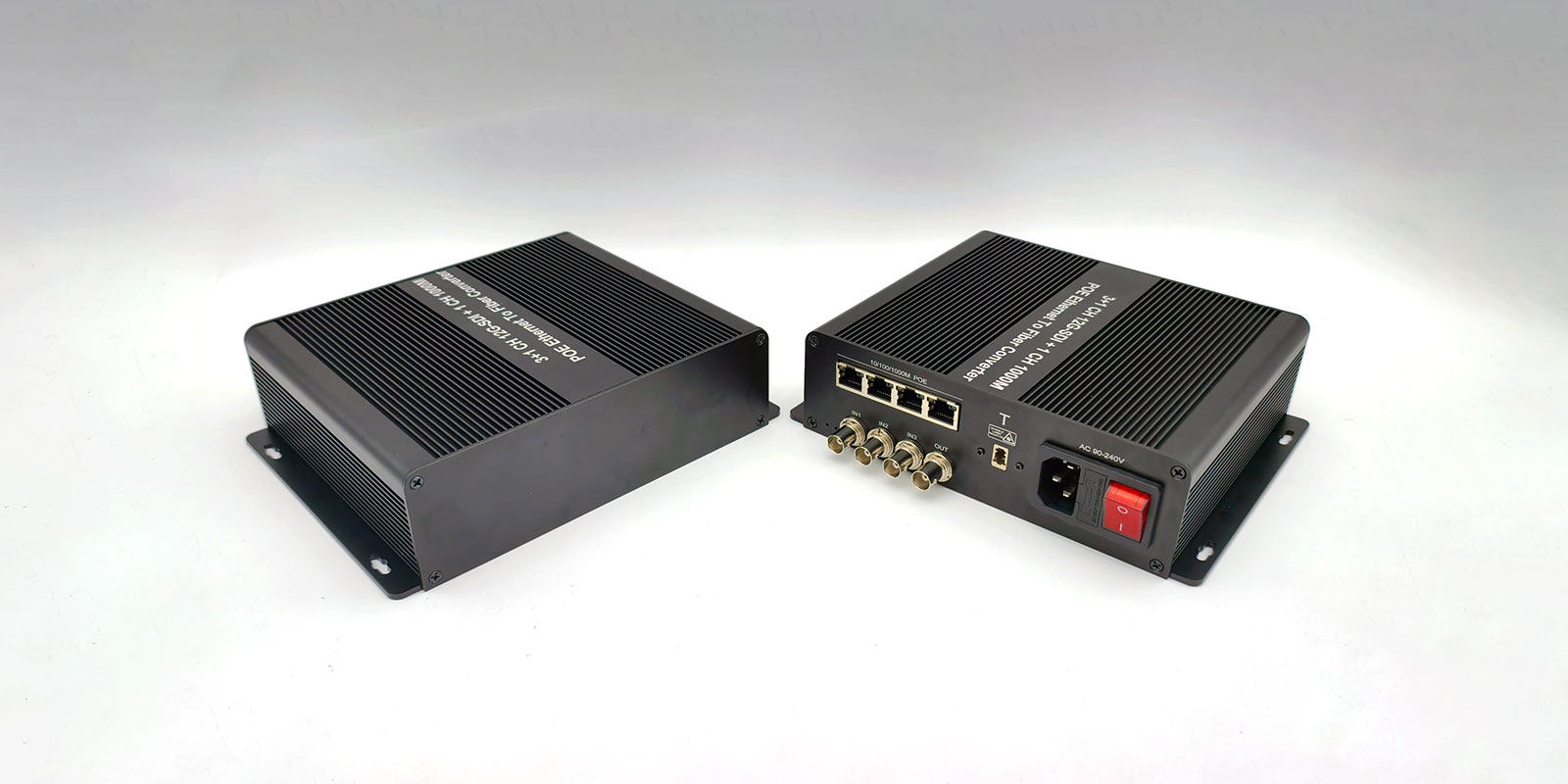

3 Channel 12G SDI with 1000M POE to Fiber Converter

Overview:

The 12G SDI with 1000M POE to Fiber Converter is a high-performance transmission solution designed for professional broadcast and video applications. It enables seamless conversion of 12G-SDI signals to fiber optics, ensuring ultra‑high bandwidth and long‑distance transmission with minimal signal loss. Integrated with 1000M Power over Ethernet (PoE) capability, it supports both data and power delivery over a single cable, simplifying installation and reducing infrastructure costs. This converter is ideal for live production, studio environments, and security monitoring systems where reliable, real‑time video transmission is critical.

Technical parameter list:

 Product Name   3-ch 12G SDI with 1000M POE to Fiber Converter
 Product Model   HK-12G-POE104
 SDI Connector   BNC 75 Ohm
 Optical Fiber   Single mode / Multimode, LC/FC/SC/ST, Duplex,
 Power Supply   AC 90-240V
 Power Consumption   100W
 Dimension / GW  2.50 kg per pair
 Working Environment   Working Temperature: -20°C to 55°C; Relative Humidity: 0 ~ 95% (no cold condensation)
 Warranty   2 Years

Because of its simple function, 4 bases can be combined into one Optic Base Station.

Features:

 3 Channel 12G SDI Input, 1 Channel 12G SDI Output
 4 Channel SDI High density digital audio/video fiber transmission
 Handle all Pathological patterns
 SD, HD, 3G, 12G input auto indentification，support 270Mbit/s – 11.88Gbit/s datarate
 Support SMPTE ST-2082, SMPTE ST-2081, SMPTE-424M, SMPTE-292M, SMPTE-259M
 Bidirectional support POE
 Compatible with 10/100/1000M Ethernet
 4-port shared 1000M network bandwidth
 10KM on single Mode Fiber transmission

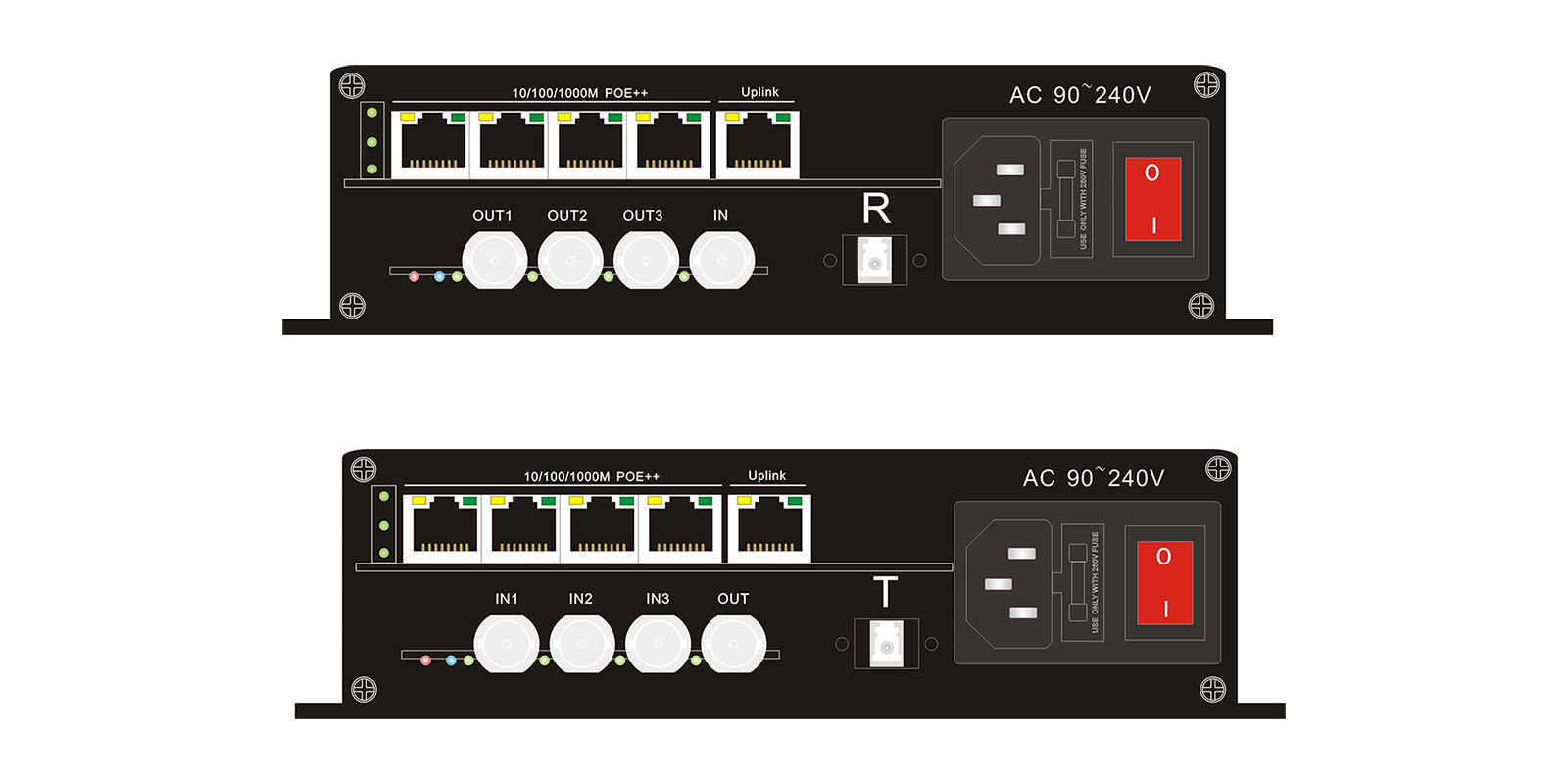

Diagram:

Detailed benefits
12G SDI and 1000M POE over a fiber system

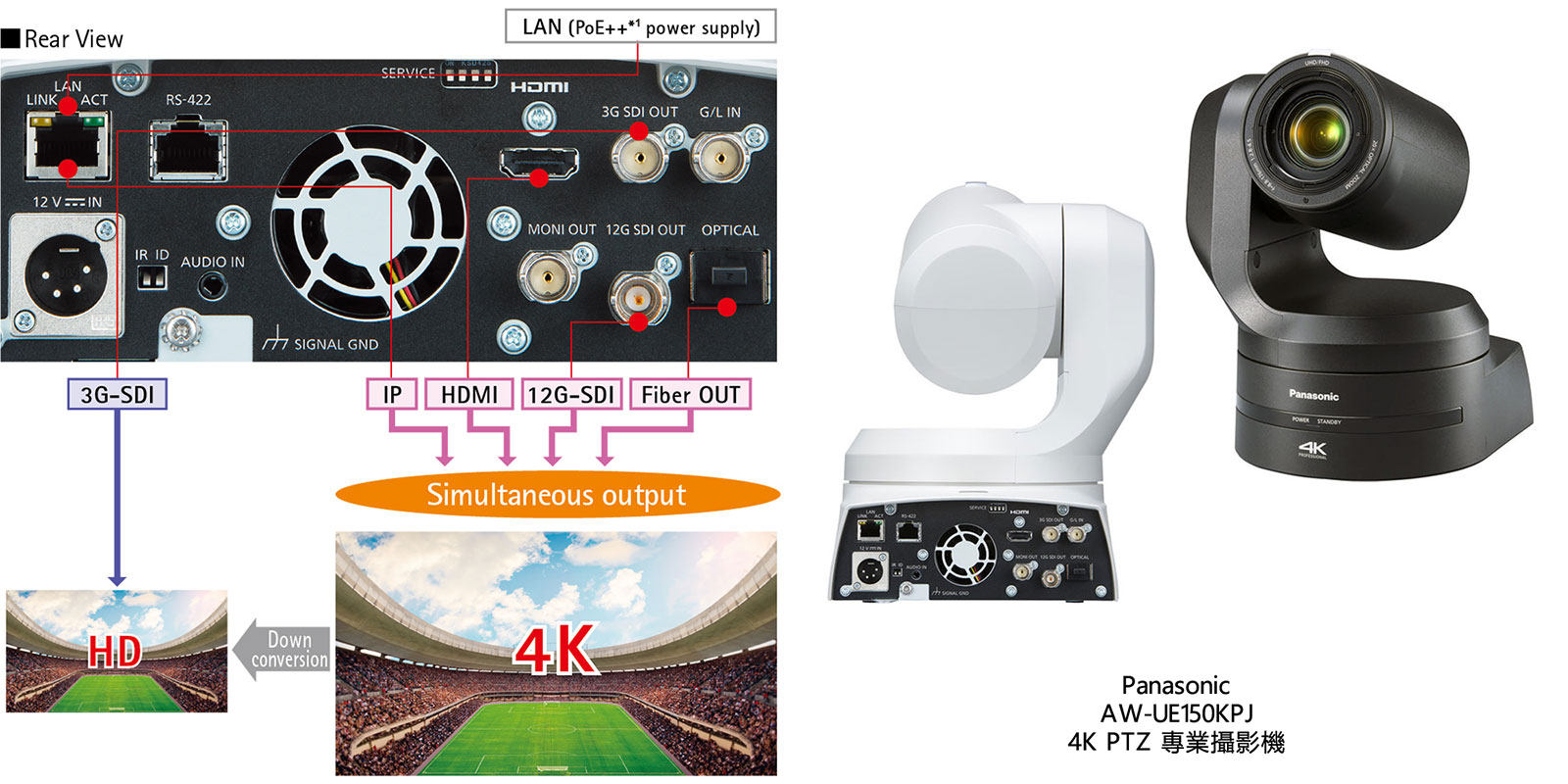

Support Panasonic AW-UE150KP 4K PTZ Camera
