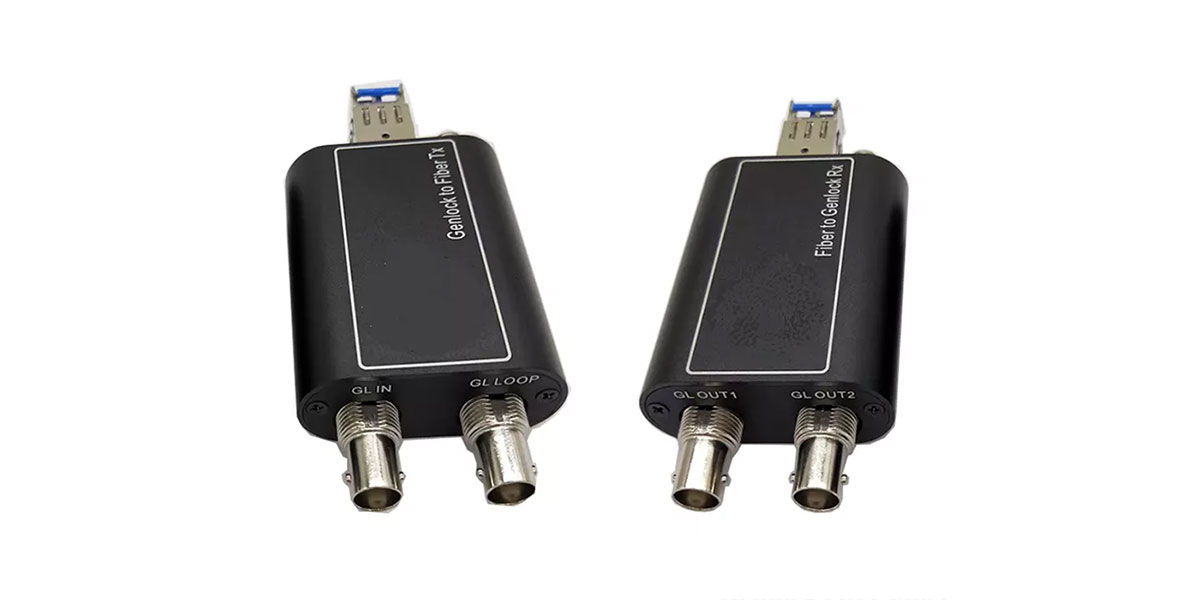

Genlock to Fiber Converter TT BC over Fiber Extender

Overview:

Genlock to Fiber Converter, or TT BC over Fiber Extender, which is extender over fiber opitcal cables.

Technical parameter list:

Product Name	1 Channel Genlock/BB/TC to fiber converter
Product Model	HK-Genlock-xx-LC
SDI Connector	BNC 75 Ohm
Optical Fiber	Single mode / Multimode, FC/SC/ST, Simplex,
Power Supply	DC 5V/12V
Power Consumption	2W
Dimension / GW	111mm52mm22mm, 0.5kg/pair
Working Environment	Working Temperature: -20°C to 55°C; Relative Humidity: 0 ~ 95% (no cold condensation)
Warranty	2 Years

Features:

· 1 Channel Genlock/BB/TC fiber transmission
· 10Km on single Mode Fiber transmission
· Signal type detect with LED indicate
· Genlock to Fiber with loop out
· Dual genlock out

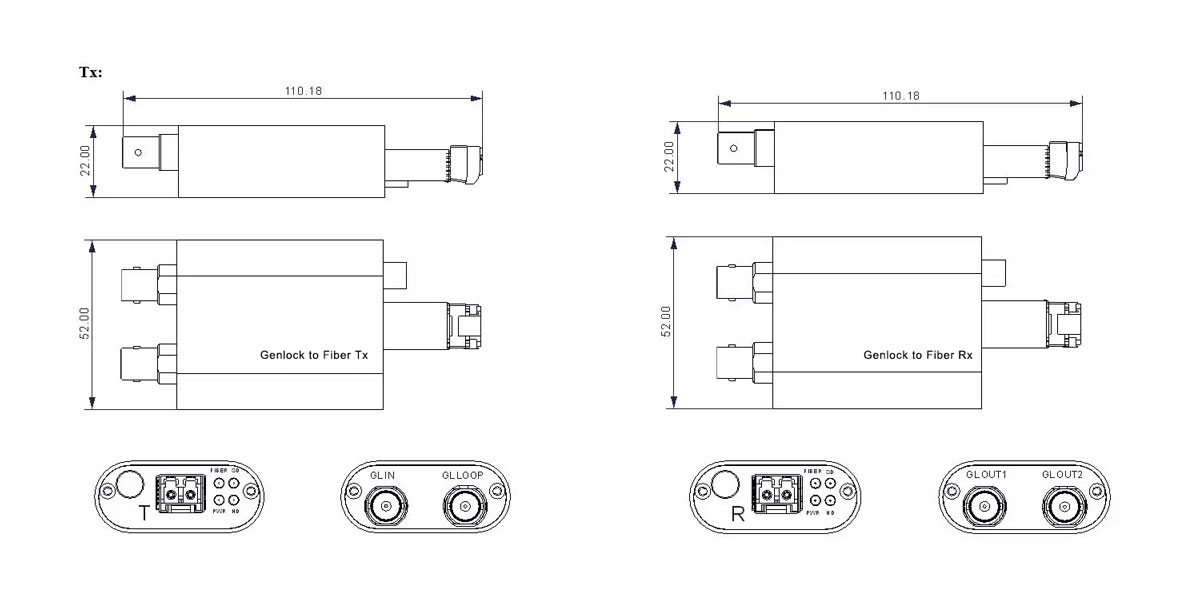

Dimension:

Genlock / TC / BB
Number of Channels:	1
Impedance:	BNC 75Ω (unbalance) Input/output
Voltage:	1.0Vp-p Input/output
Differential Gain:	< ±1.5%
Differential Phase:	< ±1%
SNR:	>60dB
